three-phase (IP55)

FCS3*00
three-phase (IP55)
  • General characteristics

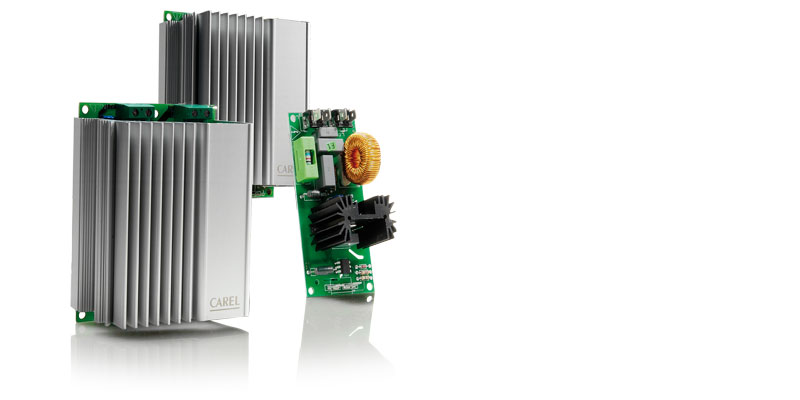

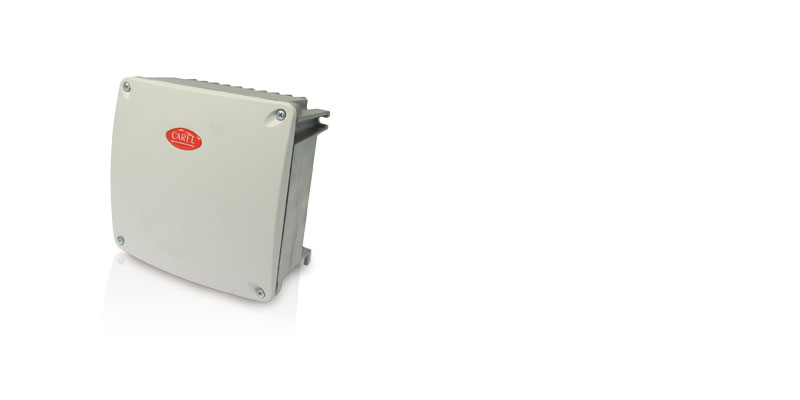

    The three-phase series rated IP55 for outside installation, are controlled by a 0 to 10 Vdc analog signal from advanced controllers such as FCM, pCO sistema controllers or by a PWM signal (Pulse Width Modulation) from the µchiller series. The range is able to control motors with current ratings from 6 to 40 A, features a control board that distributes the power to the load, in linear or quadratic mode, with the cut off, threshold, and minimum and maximum speed functions set using the trimmers on the board.

    The IP20 range, suitable for panel installation, can be controlled by a 0 to 10 Vdc analog signal from advanced controllers such as the FCM, pCO sistema controllers or a PWM signal (Pulse Width Modulation) from the µchiller series. These controllers can manage motors with current rating from 9 to 40 A, and feature a control board that distributes the power to the load, in linear or quadratic mode, with the cut off, threshold, and minimum and maximum speed functions set using the trimmers on the board.



Documentation

Technical

  • Quick Guide
    Code Description Language Date * Release
    Code +040010025

    Description Sonde e sensori / Probes and sensors Guida alla scelta e all'installazione ottimale Selection and optimal installation guide

    Language ENG  ITA

    Date 25/06/2021

    Release 1.2

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050004073

    Description FCS series three-phase fan speed controller / FCS серия трех- фазных регуляторов скорости вентилятора

    Language ENG  RUS

    Date 16/12/2014

    Release 1.5

    Code +050000685

    Description Regolatori di velocità trifase serie FCS / FCS series three-phase fan speed controller

    Language ENG  ITA

    Date 26/01/2006

    Release 1.0


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +302235170

    Description Controlli di condensazione

    Language ITA

    Date 01/10/2006

    Release 4.0

    Code +302235171

    Description Condensation controllers

    Language ENG

    Date 01/10/2006

    Release 4.0


Images

  • High resolution images
    Code Description Language Date * Release
    Code PH08LFC302-three-phase-IP55

    Description CAREL three-phase (IP55) - Cut phase speed controller - Speed controller and inverter

    Language ALL

    Date 29/03/2022

    Release R.0
