c.suite

c.suite
  • General characteristics

    The new programming suite for the c.pCO family controllers.
    Completely upgraded compared to 1tool, designed as a suite of interdependent modules, one for each stage in the development of HVAC/R units or systems.

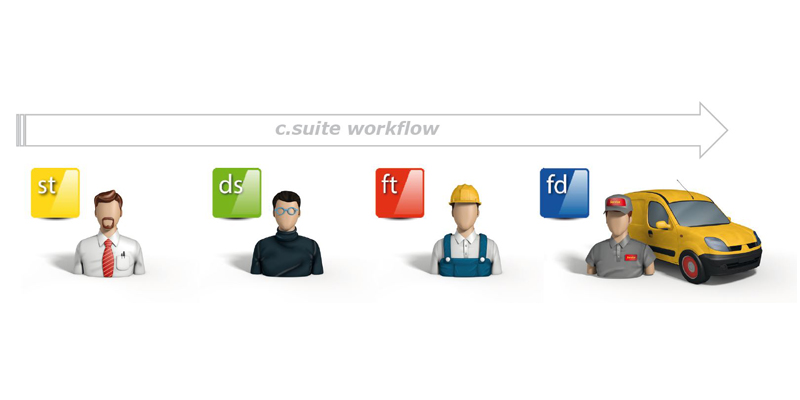

    c.suite allows a team of professionals with different skills to work in a group on the same project, increasing the efficiency of each team member. The application program is developed in logically independent parts by different professionals, each of which is provided with a different software tool.



    • c.strategy module. It allows the creation of thermodynamic algorithms. It ensures Total independence of the regulation logic from the hardware and the devices connected in the network. It supports IEC 61131 standard languages (ST, FBD, SFC, Ladder) and 32-bit data types, including REAL numbers (floating point). It features “Debug on target” functionality, i.e. possibility to debug the algorithm in real time as it is running on the controller (via USB or Ethernet port).



    • c.mask module. The interface developer can work in a specific environment used only for creating the user interface. c.mask can be linked to the c.strategy project, so that any changes made by the algorithm expert are available in real-time to the UI designer.



    • c.design module. It allows to configure type of and size of controller, I/O configuration, communication protocols, default parameters, data loggers. For each c.strategy/c.mask project, multiple configurations can be saved in c.design and then activated as desired when uploading to the controller.



    • c.factory module. A completely new tool designed for the OEM production line. It is used to program the controllers in the production flow, loading applications and the appropriate unit configuration on assembly. It has been designed to be integrated into the automated IT processes commonly used on production lines, can be controlled by command line, associating it to a barcode reader.


Documentation

Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000098EN

    Description C.PCO SISTEMA

    Language ENG

    Date 01/04/2016

    Release 2.0

  • Other related documentation
    Code Description Language Date * Release
    Code +3000224IT

    Description Educational - Programma corsi di formazione CAREL per utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R

    Language ITA

    Date 13/03/2024

    Release 2.1

    Code +3000224EN

    Description Educational - MakeCAREL’s program of training courses to make the best use of HVAC/R application technologies and systems

    Language ENG

    Date 13/03/2024

    Release 2.1

    Code +3000224FR

    Description Educational - Programme de formation CAREL pour une utilisation optimale des technologies et des systèmes dans les applications HVAC/R

    Language FRE

    Date 15/12/2023

    Release 2.0

    Code +800004031

    Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Language ENG

    Date 05/04/2023

    Release 1.2

    Code +800004030

    Description Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    Language ITA

    Date 05/04/2023

    Release 1.2

    Code +800004036

    Description Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach

    Language POL

    Date 05/04/2023

    Release 1.2
